  • Product name:small paperless recorder
  • Product Type:SWP-MSR100
  • Product nameplate:SAIC
  • Project Category:display record >> non-paper recorder >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications

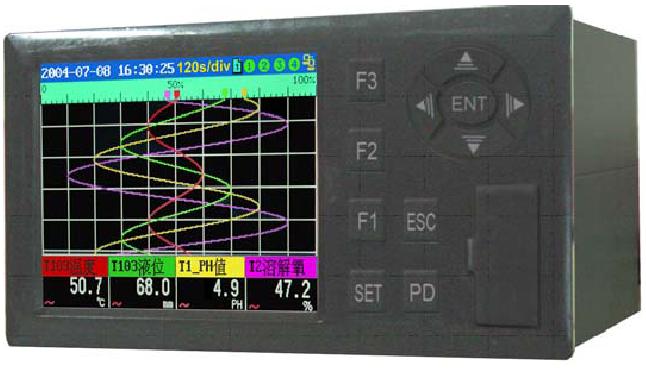

SWP-MSR100 small paperless recorder, use 3.6 inch TFT colorful LCD, new hardware structure, strong anti-vibration
Main technology index
Installation: embedded dashboard, card strip fixation, allowed max oblique30°
Dimension : 160×80×240mm
Hole size: 152×76mm
Thickness of dashboard: 2-6mm
Input
Input data and measuring circle

Main technology index
Installation: embedded dashboard, card strip fixation, allowed max oblique30°
Dimension : 160×80×240mm
Hole size: 152×76mm
Thickness of dashboard: 2-6mm
Input
Input data and measuring circle

Model
Input
Measuring circle
Record interval time
MSR102
2
250ms（refresh circle 1S）
1~240S
MSR104
4
500ms（refresh circle 1S）
MSR106
6
1ms（refresh circle 1S）
MSR108
8

Input type and measuring range and accuracy

Input type
Range
Measuring range
Accuracy
DVC
0-20mV
-9999~99999
±0.1%
0-100mV
-9999~99999
±0.1%
0-5V
-9999~99999
±0.1%
1-5V
-9999~99999
±0.1%
DCI
0-100mV
-9999~99999
±0.2%
4-20mV
-9999~99999
±0.2%
TC
S
-50.0-100.0℃
±3.7℃
100.0-1768.0℃
±2℃
B
0-1820.0℃
±2℃
K
-50.0-1372.0℃
±2℃
E
-50.0-1000.0℃
±2℃
J
-50.0-1200.0℃
±2℃
T
-199.90-320.00℃
±2℃
Wer3-25
0.0-2300.0℃
±5℃
RTD
Pt100
-200.0-850.0℃
±1℃
Cu50
-50.00-150.00℃
±1℃
RTD
DCV input（TTL）
OFF：<2.4V
ON：<2.4V
Contact input


Frequency
0-15KHZ
0~99999
±1

(standard running condition: 23±2℃，55±10%  RH, power voltage: 90~260VAC, power frequency:50/60Hz±1%)
Max input voltage
2VDC or lower voltage range and thermocouple; ±10VDC(continuous)
6VDC or lower voltage range: ±50VDC（continuous）
Input resistance
2VDC or lower voltage range and thermocouple: 10MΩ or more
6VDC or lower voltage range: about 1MΩ
Input bias current: 10nA or lower
Maximum common-mode interference voltage: 250V  AC  rms（50/60Hz）
CMRR: 40Db（50/60Hz±0.1%）
Max Jam voltage: 250VAC rms （50/60Hz）
Output
Analog output: current: 0-10mA（load≤750Ω）
4-20mA（load≤750Ω）
Voltage: 0-5V（load≥250KΩ）
1-5V（load≥250KΩ）
Switch output: relay contact volume: AC250V/5A or DC30V/5A（resistive load）
SSR output-  400V/0.05A
SSR output- 5~24V/0.05A
Feed output: DC24V/25Ma


,
