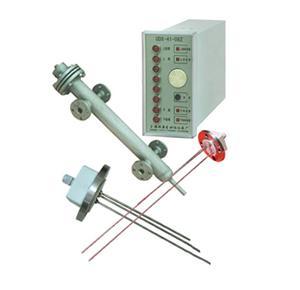

Integrated structure, sensor and transmitter in one set. Mainly used for a variety of micro-level control system for liquid level control. Two output modes: relay dry contact type (switching capacity) and switching electrical current
Maximum operating conditions: Pn ≤ 0.1Mpa T ≤ 65 ℃ Rs ≤ (25 ± 5) KΩ Rg ≥ (35 ± 5) KΩ Measurement range: ≤ 1000 mm Number of measuring points: 2 points maximum Protective grade: Ip65 Anti-burst rating: d Ⅱ BT3 ~ T6 Electrode materials: 1Cr18Ni9Ti Φ5 stainless steel Installation: Bolt Holes threaded screw or bolt mounted within
