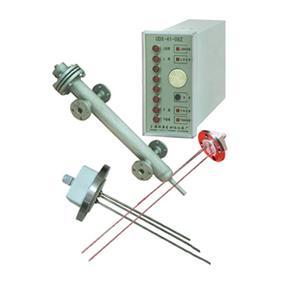

A variety of major sewage treatment for urban, light industry in a variety of water treatment, food and beverage industry in the production process level control and display. Stainless steel electrodes, extended life.
Maximum operating conditions: Pn ≤ 0.1Mpa T ≤ 65 ℃ Rs ≤ (15 ± 5) KΩ Rg ≥ (25 ± 5) KΩ Measurement range: ≤ 3000mm Number of measuring points: at least 2 points up to 8 Protective grade: Ip65 Anti-explosive grade: d Ⅱ BT3 ~ T6 Electrode materials: 1Cr18Ni9Ti Φ5 stainless steel Installation: Pn1.0 Dn65 flange flange flange Pn1.0 Dn25 Pn1.0 Dn50 of three Bolt Holes M39 × 1 Shows the number of points: 2 points up to at least 8 Instrument size: 80 (W) × 160 (high) × 250 (D) (direct mounting) 160 (W) × 80 (high) × 250 (D) (Horizontal installation)
