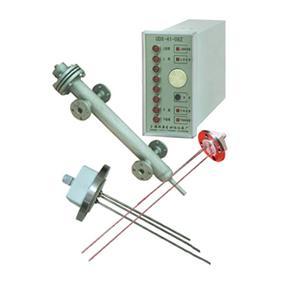

Home> level meter >> electrode type level meter >> UDX-42Electrode Level Meter
  • Introduction
  • Specifications
 For small boiler water level within the more limited display and control. Stainless steel electrodes, extended life.
Maximum operating conditions: Pn ≤ 1.6Mpa T ≤ 200 ℃ Rs ≤ (25 ± 5) KΩ Rg ≥ (35 ± 5) KΩ
Measurement range: (-250 ~ +250) mm
Number of measuring points: at least 2 points up to 8
Shows the number of points: 2 points up to at least 8
Protective grade: Ip65
Electrode materials: 1Cr18Ni9Ti Φ5 stainless steel
Installation: Dn25 Pn1.6 flange 16-M12 × 50 Bolt
Instrument size: 80 (W) × 160 (high) × 250 (D) (direct mounting)
160 (W) × 80 (high) × 250 (D) (Horizontal installation)
,
