Home> level meter >> level transmitter >> 3151LT Flange type Level Transmitter
  • Product number:MC-000039004923

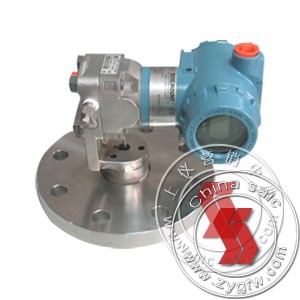

  • Product name:Flange type Level Transmitter
  • Product Type:3151LT
  • Product nameplate:SAIC
  • Project Category:level meter >> level transmitter >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
3151 is a new type of small intelligent transmitter which uses advanced digital circuit and communication technology. It is used to measure level, flow and pressure. Compare to the traditional transmitter, it is lighter and more function. It is widely used in petroleum, chemical, metallurgy, power station, light industry and municipal engineering and other fields. 3151 series intelligent transmitter has HART communication protocol and support the fieldbus technology updating.
Media: liquid, gas or vapor
Adjustment range ratio:  100:1
Accuracy:  ±0.075% of adjusting range
±0.1% of maximum range
output: two-wire 4-20Madc
Power supply: power voltage 12.5~48VDC
ambient temperature:  –40~85℃
media temperature:  –40~104℃
weight: 3.9kg


Model Selection

3151LT
Flange type level transmitter

code
Measure range
4
0-0.40~40kPa
5
0-2~200kPa
6
0-7~700kPa

code
Output signal
A
4~20mA with HART protocol

code
size
length of insert
Material of diaphragm and insert tube
A0
A2
A4
A6
B0
B2
B4
B6
C0
C2
C4
C6
D0
D2
D4
D6
E0
F0
3#
3#
3#
3#
4#
4#
4#
4#
3#
3#
3#
3#
4#
4#
4#
4#
3#
4#
flat
50.8mm
101.6mm
152.4mm
flat
50.8mm
101.6mm
152.4mm
flat
50.8mm
101.6mm
152.4mm
flat
50.8mm
101.6mm
152.4mm
flat
flat

316SST stainless steel
316SST stainless steel
316SST stainless steel
316SST stainless steel
316SST stainless steel
316SST stainless steel
316SST stainless steel
316SST stainless steel
Hastelloy C
Hastelloy C
Hastelloy C
Hastelloy C
Hastelloy C
Hastelloy C
Hastelloy C
Hastelloy C
Tantalum
Tantalum

code
flange
A
B
C
D
3#, 150, use with A\C, carton steel
4#, 150, use with A\C, carton steel
3#, 300, use with A\C, carton steel
4#, 300, use with A\C, carton steel

code
Material of sensor components and low-voltage side
Low side pressure chamber and the joint capacity
Relief valve
Low side isolation diaphragm
Filled low-pressure side of the irrigation
12
22
23
25
316SST 316SST
316SST
316SST 316SST
316SST
316SST
Hastelloy C
Tantalum
Silicone oil
2A
2B
2D
316SST 316SST
316SST
316SST 316SST
316SST
316SST
Hastelloy C
Tantalum
Inert oil

code
Filling liquid of High-pressure side of the access flange
C
D
H
DC704 Silicone oil
DC200 Silicone oil
Inert oil

code

M11
Linear indicating
3151LT　　　4　　　 A　　　 AO　　 A　 22　 C　　      M11　　

,
