  • Product number:MC-000000004313
  • Product name:pneumatic diaphragm control valve(air on)
  • Product Type:ZM（A/B）T-10
  • Product nameplate:SAIC
  • Project Category:pneumatic valve >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications

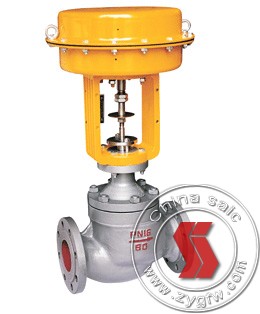

Pneumatic diaphragm adjusting valve, made up of multi-spring pneumatic diaphragm actuator and diaphragm valve. Smooth flow, flexible valve, no filler in upper cover. Used in adjusting fields of high viscosity fluid, suspended like particles, fiber media and toxic media, corrosive media
Main technology index
Nominal diameter  DN（mm）
15
20
25
32
40
50
65
80
100
125
150
200
Rated flow coefficient  KV
8
12
16
28
60
68
90
160
300
500
600
1200
Nominal pressure  PN　MPａ
1.0

Model of actuator
ZM（A/B）-2
ZM（A/B）-3
ZM（A/B）-4
ZM（A/B）-5

Action mode
Air off（B）； air on（K）

Signal pressure KPａ
20～100；40～200；20～60；60～100

Travel  mm
10
16
25
40
60

Allowed max pressure when closed MPａ
Signal pressure KPａ
P2＝0
120
0.9
0.9
0.40
0.4
0.3
0.2
0.2
0.1
0.05
0.015
0.01
0.06

140
1.0
1.0
0.80
0.8
0.6
0.4
0.4
0.2
0.1
0.03
0.02
0.12

P1＝P2
120
0.45
0.45
0.20
0.2
0.15
0.1
0.1
0.05
0.02
0.07
0.05
0.03

140
0.9
0.9
0.40
0.4
0.3
0.2
0.2
0.1
0.05
0.14
0.10
0.06

,
