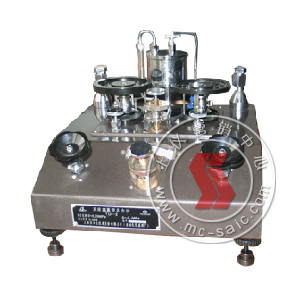

Home> pressure meter >> pressure-checking meter >> YJY-60 Pressure Gauge Calibrator
  • Introduction
  • Specifications
The pressure calibrator is used to calibrate pressure gauge and other measure pressure instrument. The pressure can achieve at 6MPa and 60MPa. Footnote with A-type means it is equipped with hand pumps.
the maximum calibrate pressure:0~6MPa(YJY-60A,60) 0~60MPa(YJY-600A,600)
Pressure transmission medium: transformer oil (YJY-60A,60) 20#油(YJY-600A,600)
Hand lift pump pressure:<1MPa
Connection nut:M20×1.5
weight:17.5kg


,
