  • Product number:MC-000022003934

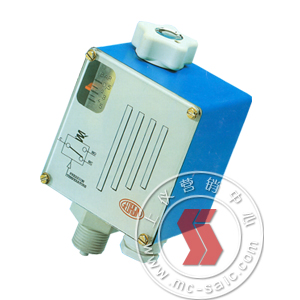

  • Product name:Pressure Switch
  • Product Type:U
  • Product nameplate:SAIC
  • Project Category:pressure meter >> pressure switch >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
This series of products equip with activities arms device which can bear impact or vibration without setpoint deviation. The load generated by sensor directly against the spring load, the arm will not withstand any force; it can achieve a linear measure and dead. User can select setting point through buttons and the dead zone is adjusting inside.
Housing: glass fiber and poly-aryl amide
Protection level: IP65
Pressure component: NBR diaphragm and copper flange
Connection: According to the requirements of EN837-1 components 1/2BSP component
Temperature components: 2 meters capacity, copper ball Ø9 × 120 mm
Working temperature:-20~+60℃
Process temperature (for pressure):-20~+100℃
weight:700g
Pressure
model
range(Bar)
Dead zone
Maximum pressure (bar)
minimum≤
Maximum≥
UP-60K
0.5~5
0.2
1
10
UP-60P
1~10
0.4
2
20
UP-60Q
2~20
0.8
4
40
