Home> actuator >> electric actuator accessories >> ZKZZ intelligent direct electric actuator
  • Product number:MC-000053003906

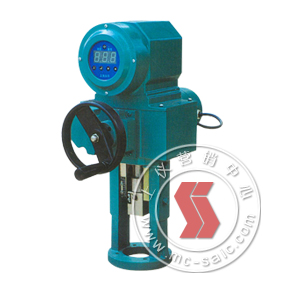

  • Product name:intelligent direct electric actuator
  • Product Type:ZKZZ
  • Product nameplate:SAIC
  • Project Category:actuator >> electric actuator accessories >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
ZKZZ intelligent direct electric actuator can be used with III-type instruments and assembly instrument、display regulation instruments, using power as the source, receive unified standard signal 4~20mA DC, and convert it to the linear displacement, widely used in regulation systems of power plants, steel mills, chemical industry, light industry and other industrial sectors.
Main technical index
Control signal (input signal) :4-20mA DC or 1-5V DC；
Feedback signal of position: 4-20mA DC；
Basic error: ±2.5%
Dead band : 1%-3% of range
Hysteresis : not more than 1.5%；
Working power :
Rated voltage: 220V +10% -15%；
rated frequency : 50Hz ±1%；
using environment :
a. temperature: -25℃- +70℃；
b. relative humidity : not more than 95%
c. around air should not contain corrosive gas
direct electric actuator
Model
Rated load resistance
（N）
rated travel
（mm）
speed
（mm/s）
Current of motor
（A）
weight

（kg）
ZKZZ-0401
4000
10
1.0
0.35
25
ZKZZ-0402
16
ZKZZ-0403
25
ZKZZ-0604
600
40
0.55
35
ZKZZ-0605
60
ZKZZ-1005
10000
60
0.7
50
ZKZZ-1605
16000
60
ZKZZ-1606
100
55
ZKZZ-2005
20000
60
0.5
50
ZKZZ-2006
100
1.0
55
weight
,
