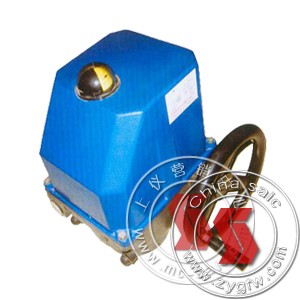

PSQ angel electric actuator, output torque is 15Nm-700Nm, used for 90° rotary valve( ball valve、butterfly valve) and on-off of throttle and controlling

Specifications and parameters

□working principle

PSQ angel electric actuator mainly made up of isolated electric controlling part and gear part, motor connect the two isolated parts. Torque transmitted through the main gear to a planetary gear, main gear drive hollow gear to drive planetary gear . Planetary gear has three gears less than secondary gear, then can be drive by hollow gear.
