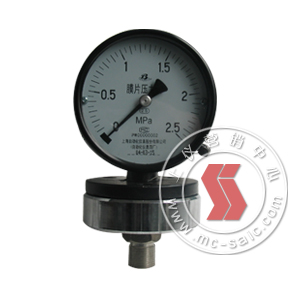

  • Product name:Diaphragm Pressure Gauge
  • Product Type:YPF-100A
  • Product nameplate:SAIC
  • Project Category:pressure meter >> pressure meter >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications
Diaphragm pressure gauge is used to measure pressure or negative pressure of corrosive, non-solidification or non-crystallization liquid media.
Accuracy grade：2.5 grades
Ambient temperature：－40～＋70℃
RH: 90%。
Temperature influence：Temperature deviation is 20±5℃，additional temperature error <=0.04%/℃。
Working placement：Vertical installation。
Enclosure protection level： IP64。
Model mark YPF－□－□
Outer diameter of case
type
100－Ф100mm
150－Ф150mm
A－diaphragm pressure gauge
M20×1.5 external thread connector
B－stainless steel diaphragm pressure gauge
M20×1.5 external thread connector
B－F－flange stainless steel diaphragm pressure gauge
25－10GB flange interface
Range, dimension and weight：
model
range
Size of pressured part(mm)
Outer diameter of case (mm)
Weight(Kg)
YPF-100A
YPF-100B
YPF-100B-F
0～0.06、0～0.1、0～0.16、0～0.25、0～0.4、0～0.6、0～1、0～1.6、0～2.5、－0.1～0、－0.1～0.06、－0.1～0.15、－0.1～0.3、－0.1～0.5、－0.1～0.9、－0.1～1.5
－0.1～2.4Mpa
Ф85
Ф115
Ф100
1.6
YPF-150A
YPF-150B
YPF-150B-F
Ф85
Ф115
Ф150
Ф150
1.8
1.8
YPF-100A
YPF-100B
YPF-100B-F
0～1.6、～2.5、0～4、0～6、0～10
0～16、0～25、0～40
－1.6～0、－2.5～0、－4～0、－6～0、
－10～0、－16～0、－25～0、－40～0
－0.8～0.8、－1.2～1.2、－2～2、－3～3、－5～5、－8～8、－12～12、－20～20KPa
Ф160
Ф100
2.9
YPF-150A
YPF-150B
YPF-150B-F
