Home> logic switch >> pressure >> YPK－50 Pressure Controller
  • Product number:MC-000480003350
  • Product name:Pressure Controller
  • Product Type:YPK－50
  • Product nameplate:SAIC
  • Project Category:logic switch >> pressure >>
  • Manufacturer:Shanghai Automation Instrumentation Co., Ltd.
  • Sales unit: Shanghai Automation Instrumentation Marketing Center
  • Information download:Click to enter the download page
  • Introduction
  • Specifications

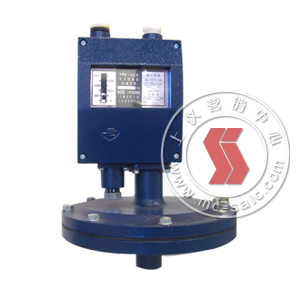

YPK－50 pressure controller uses diaphragm-type sensor which can be used in non-corrosive medium and liquid to stainless steel, cast iron and so on. the setting value is adjustable and the range is 0～20kPa.
Ambient temperature：－25－55℃
Enclosure protection class：IP40
Installation location：Interface vertical downward（inclined 10°）
Contact capacity：AC　380V　3A（resistive）
              DC　220V　2.5A（resistive)
number
Settings
Adjustment range
KPa
Switching difference
KPa
Setting value error
KPa
Repeatability error
KPa
1
0……2.5
0.5……1
±0.1
0.16
2
0……5
0.8……2
±0.2
0.32
3
0……10
1.1……3.5
±0.4
0.6
4
0……20
1.6……6
±0.8
1
