Home> temperature meter >> noncontact temperature meter >> WFHX-68 Portable Infrared Thermometer
  • Introduction
  • Specifications

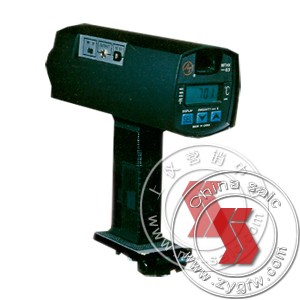

WFHX-68 portable infrared thermometer is a new type  non-contact thermometer which combines micro-processing technology, light harvesting, mechanical, electrical and modern technology .

Thermometer has the feature of high accuracy, wide range, stable performance, response sensitivity, direct display, easy operation, portability, and beautiful appearance. It is suitable to measure temperature of power conductors, high-frequency heating body, moving objects, vacuum and other environment under which meter will no be damaged. Such as pipe, furnace wall, roller surface, cloth surface, plastic film, furnace, forging, rolling and smelting etc. it is an indispensable thermometer in metallurgy, chemical, rubber, textiles, plastics, paper, food processing and other industrial areas.
range
0~800℃
1000~2000℃
1400~3000℃
600~1000℃
800~1400℃
resolution
1℃
Measure accuracy
Upper limit of range±(1﹪+1)℃
Weight accuracy
Upper limit of range±0.25﹪+1℃
Measure bands
8~14mm
0.8~1.1mm
Detector element
Film Thermopile
Silicon photovoltaic cells
Light caliber
Ø34㎜
Ø20㎜
Response time
1 second
1 second
Working distance
0.5m~∞
Optical System
Fixed focus type SLR system
Direct lens-type
Aiming system
Laser aiming
Sound search target
Ambient temperature
0~45℃
RH
<75﹪
Power supply
(R64)4 batteries
Enclosure material
ABS Resin
Case size
66×145×192㎜
weight
500g
,
